OPERA TECHNICA TARGA 2000 carbide side milling cutter SG2W P-755-Raise

φ80x1.5xφ22

φ80x1.5xφ22P-755
SIDE MILLING CUTTER

ORDER CODEP-755
Solid carbideCarbide
Our price$72

specification

Order code	Raise ref	material	size	price	Quantity	Add to cart
P-755	SG2W/FP21W	Carbide	φ80x1.5xφ22	$72

Quick details

QUICK DETAILS

Order code:P-755
RAISE Ref. :SG2W/FP21W
Material:Carbide

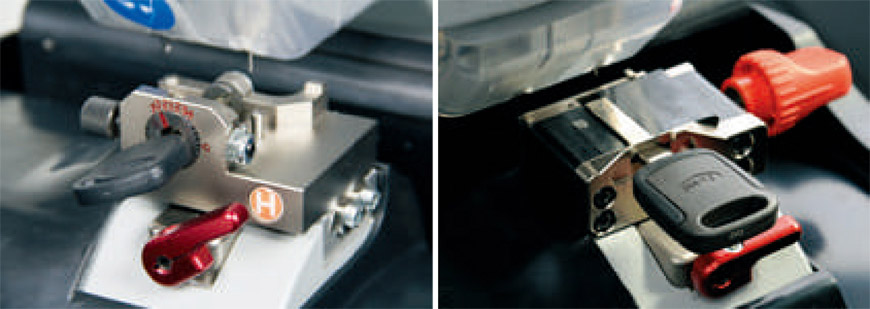

For machine:SILCA OPERA/TECHNICA/SILCA TARGA 2000

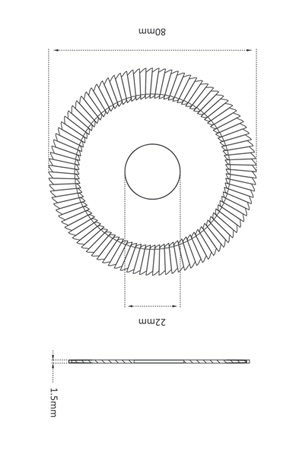

D[mm]:80
d[mm]:22
Thick[mm]:1.5
*Click the machine name to get all the cutters for this machine

1
For machineSILCA OPERA/TECHNICA/SILCA TARGA 2000
2
same size hssm35 side milling cutter P-1105 SG2/FP21
3
MATERIAL Whole piece of carbide, the hardness reaches HRA 92.5 or above,quite high hardness. The cutting edge is sharp and no longer need to change the cutter when cutting the iron key, greatly save your precious time.
4
Production process After seven grinding processes, CNC precision grinding process, the cutting edge is extremely grinding process, the cutting edge is extremely sharp. In particular, the side edge is sharp, and the depth of the side edge ensures the sharpness of the processing on the side of the Mortice key.

SUIT FOR PROCESSING KEYS

All inner milling slots and outer milling slot keys, suitable for processing nickel silver keys, which can efficiently process original and high-hardness key blanks, such as Honda original keys, STRATTEC key blanks, etc.

SUIT FOR PROCESSING KEYS

Product Video

55, 60, 80 end mill series difference table

	55 COMMON GRADE	60 UNIVERSAL GRADE	TOP 80 SWIss GRADE
Material	Material with good breaking resistance	Material compatible with wear and break resistance	The High Hardness and the longest-wearing type material
For key	Civil key and copy car key	Mainly for copy key	Original high hardness key
For machine	Mainly for Manaul type key duplicator machine	Mainly for CNC key duplicator machine	CNC key duplicator machine
processing	High accuracy grinding	High gloss grinding on flute	Mirror grinding on the flute
Tolerance	0.01mm	0.01mm	0.005mm
Using life	More than 30 pieces multitrack key	Cutting 100 pieces keys	Cutting 100 pieces original Nickel Silver keys
