solid carbide end mill cutter and tracer point for 3D laser key productsP-1762
TOP 80 SWISS GRADE

ORDER CODEP-1762
Solid carbideCarbide
Our price$120

PRODUCTS DETAILS
PRODUCT REVIEWS

specification
quick details
description
packing

specification

Order code	Raise ref	material	d.mm	Replaceable cutters Ref	price	Quantity	Add to cart
P-1762	TR0.0625	Carbide	1.6		$120

Quick details

QUICK DETAILS

Order code:P-1762
RAISE Ref. :TR0.0625
Material:Carbide

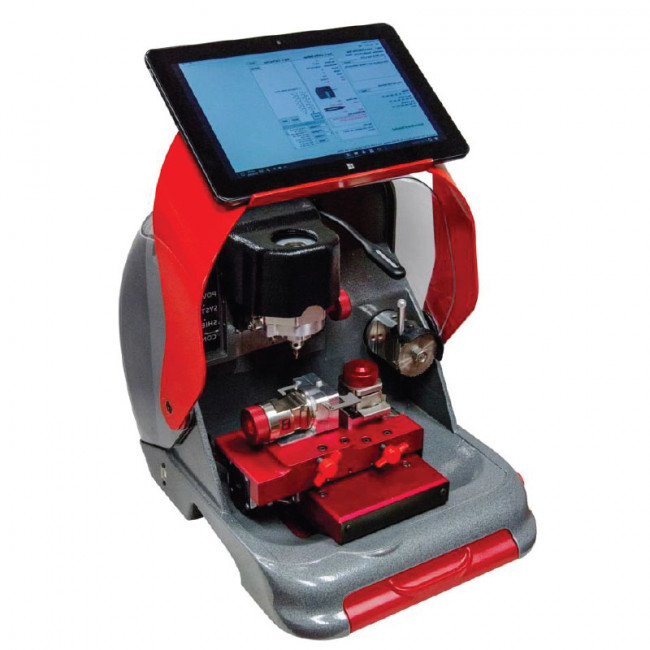

For machine:3D Elite，3D Xtreme and Xtreme S，3D Pro, X and XL, Retro,

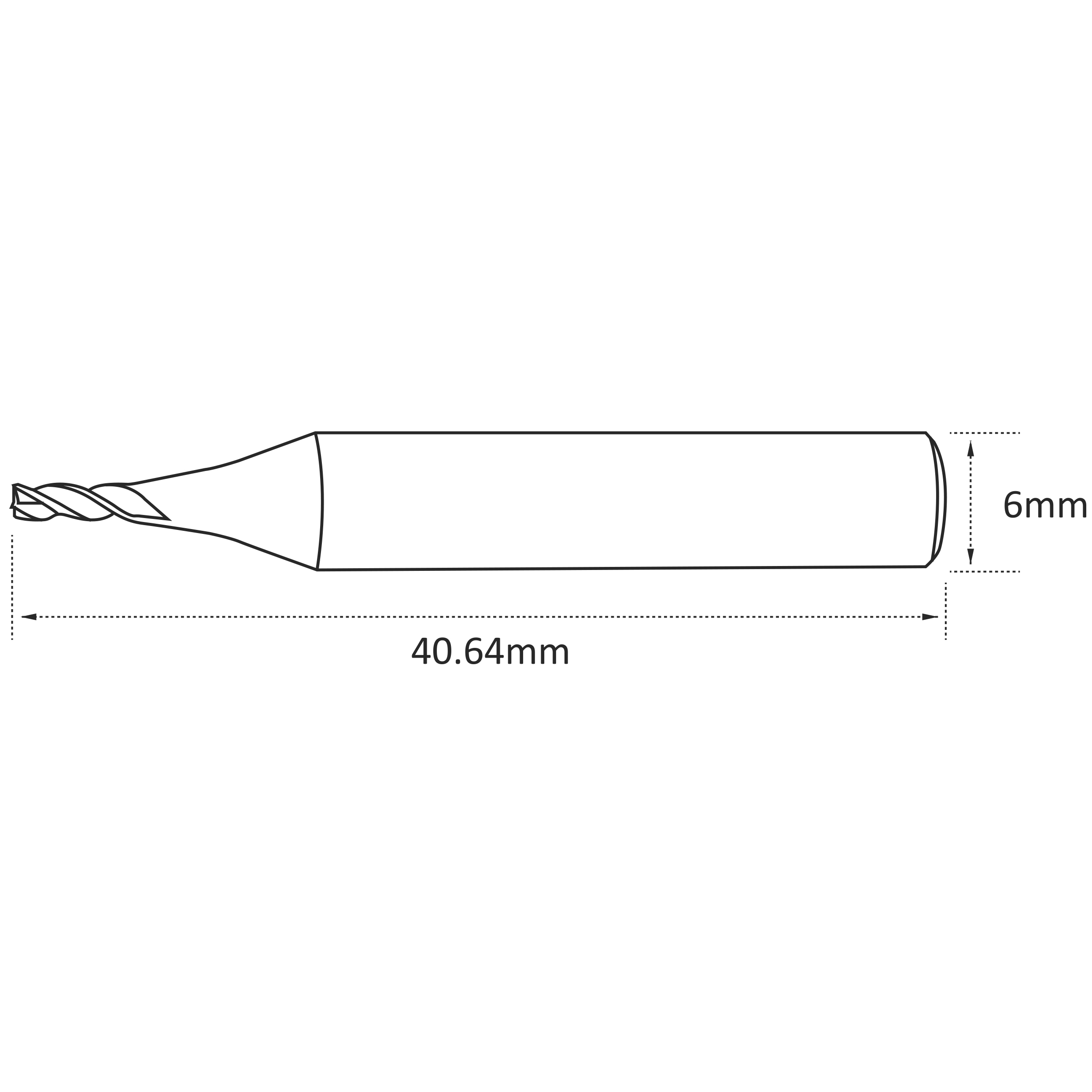

D[mm]:6
d[mm]:1.6
L[mm]:40.64
Replaceable cutters
*Click the machine name to get all the cutters for this machine

1
For machineTR0.0625 end milling cutter for 3D Elite，3D Xtreme and Xtreme S，3D Pro, X and XL, Retro
2
Corresponding angle milling cutter P-3952
3
FEATURES 1.Material: Top quality, high hardness and high wear-resistant carbide from Sweden, ultra-fine particles, good wear resistance.2.Manufacturing process: 5-axis automatic grinding center for mirror grinding, sharp edge, low noise, side fixed plane adopts full grinding process, compact installation3.Features: Accurate size, cutting edge size accurary of 0.005mm, cutting key size precision, sharp edge4.Advantages: The cutters are being tested on electronic key cutting machines, sharp, can cut brass and nickel silver key, test Honda original keys, STRATTRC key blanks, smooth edge, no burr, continue to use after processing 200 keys

SUIT FOR PROCESSING KEYS

All internal milling slots and external milling slot keys, suitable for processing nickel silver copper keys, can efficiently process original high hardness key blanks, such as Honda original keys, STRATTEC key blanks, etc.

P-3896

Product Video

55, 60, 80 end mill series difference table

	55 COMMON GRADE	60 UNIVERSAL GRADE	TOP 80 SWIss GRADE
Material	Material with good breaking resistance	Material compatible with wear and break resistance	The High Hardness and the longest-wearing type material
For key	Civil key and copy car key	Mainly for copy key	Original high hardness key
For machine	Mainly for Manaul type key duplicator machine	Mainly for CNC key duplicator machine	CNC key duplicator machine
processing	High accuracy grinding	High gloss grinding on flute	Mirror grinding on the flute
Tolerance	0.01mm	0.01mm	0.005mm
Using life	More than 30 pieces multitrack key	Cutting 100 pieces keys	Cutting 100 pieces original Nickel Silver keys
