solid carbide end mill cutter and tracer point compatible with viperP-3916
TOP 80 SWISS GRADE

ORDER CODEP-3916
Solid carbideCarbide
Our price$60

PRODUCTS DETAILS
PRODUCT REVIEWS

specification
quick details
description
packing

specification

Order code	Raise ref	material	Angle	Replaceable cutters Ref	price	Quantity	Add to cart
P-3916	DW8095	Carbide	95°	W234	$60

Quick details

QUICK DETAILS

Order code:P-3916
RAISE Ref. :DW8095
Material:Carbide
For machine:Compatible with Electronic key cutting machine,Viper,QUATTROCODE,TRIAX QUATTRO,TRIAX -e.code,KABA ILCO TRICODE HS

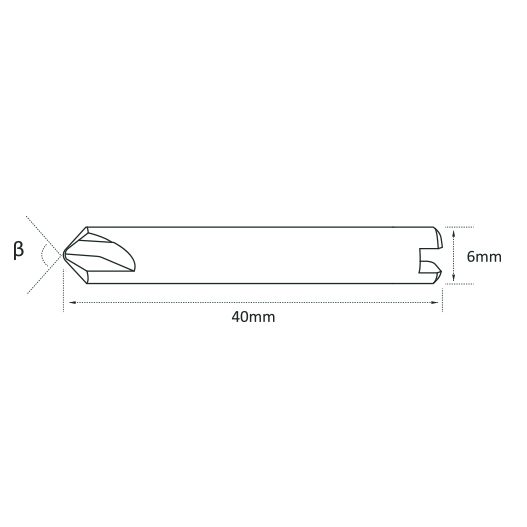

D[mm]:6
Angle:95°
L[mm]:40
Replaceable cuttersW234
*Click the machine name to get all the cutters for this machine

1
For machineCompatible with Electronic key cutting machine,Viper,QUATTROCODE,TRIAX QUATTRO,TRIAX -e.code,KABA ILCO TRICODE HS
2
Same size 60 series milling cutter DW5095
3
FEATURES 1.Material: Ultra-high hardness and high wear-resistant carbide material from Sweden, the ultra-fine particles, good wear resistance2.Manufacturing process: Fully automated grinding center mirror polishing, sharp edge, low cutting noise3.Features: high drill force design, cut quickly without shock, processed key smooth without burrs4.Advantages: Sharp, cut brass key and nickel silver copper keys, smooth edges, no burrs.

SUIT FOR PROCESSING KEYS

All internal milling slots and external milling slot keys, suitable for processing nickel silver copper keys, can efficiently process original high hardness key blanks, such as Honda original keys, STRATTEC key blanks, etc.

P-3896

Product Video

55, 60, 80 end mill series difference table

	55 COMMON GRADE	60 UNIVERSAL GRADE	TOP 80 SWIss GRADE
Material	Material with good breaking resistance	Material compatible with wear and break resistance	The High Hardness and the longest-wearing type material
For key	Civil key and copy car key	Mainly for copy key	Original high hardness key
For machine	Mainly for Manaul type key duplicator machine	Mainly for CNC key duplicator machine	CNC key duplicator machine
processing	High accuracy grinding	High gloss grinding on flute	Mirror grinding on the flute
Tolerance	0.01mm	0.01mm	0.005mm
Using life	More than 30 pieces multitrack key	Cutting 100 pieces keys	Cutting 100 pieces original Nickel Silver keys
